Components commonly found in ultrasonic filter cleaning machines

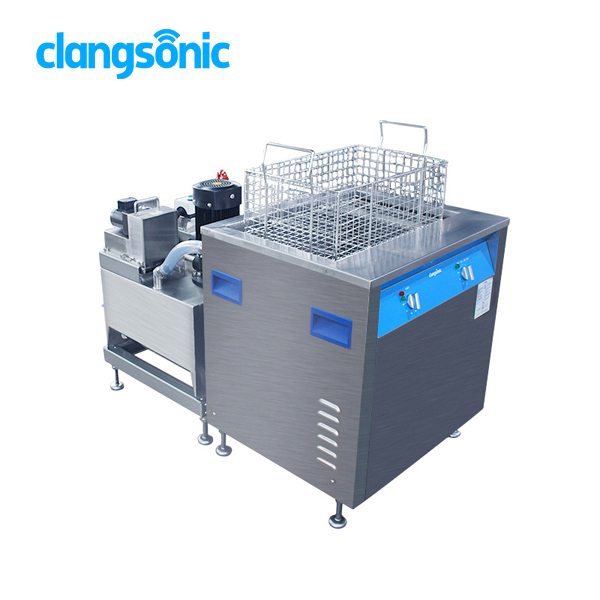

An ultrasonic filter cleaning machine is a device that utilizes ultrasonic technology to clean filters efficiently. Filters are commonly used in various industries to remove impurities or particles from liquids or gases. Over time, filters can become clogged with contaminants, reducing their effectiveness. Traditional cleaning methods may not be sufficient for intricate or delicate filters.

Ultrasonic cleaning involves the use of high-frequency sound waves (ultrasonic waves) to create microscopic bubbles in a cleaning solution. These bubbles implode upon contact with the filter, generating tiny shock waves. These shock waves effectively dislodge and remove contaminants from the filter's surface, even from hard-to-reach areas.

Here are some key features and components commonly found in ultrasonic filter cleaning machines:

1. Ultrasonic Transducers: These are the elements that generate ultrasonic waves. They are typically mounted to the cleaning tank.

2. Cleaning Tank: The tank holds the cleaning solution, and the filter to be cleaned is immersed in this solution during the cleaning process.

3. Cleaning Solution: A specialized cleaning solution is used to enhance the cleaning process. This solution can be water-based or solvent-based, depending on the type of contaminants being removed.

4. Timer and Controls: The machine usually comes with adjustable settings such as cleaning time and temperature, allowing users to customize the cleaning process based on the type of filter and contaminants.

5. Heating Element: Some ultrasonic filter cleaning machines include a heating element to warm the cleaning solution, which can improve cleaning efficiency.

6. Filtration System: In some cases, there may be a filtration system to remove contaminants from the cleaning solution, allowing for multiple uses before replacement.

7. Rinsing and Drying Stations: Some machines may have additional stations for rinsing and drying the filters after the ultrasonic cleaning process.

Benefits of using ultrasonic filter cleaning machines include:

- Efficiency: Ultrasonic cleaning can reach areas that traditional cleaning methods may miss, providing a thorough and effective cleaning process.

- Gentle Cleaning: Despite its effectiveness, ultrasonic cleaning is generally gentle on delicate filters, reducing the risk of damage.

- Time-Saving: Ultrasonic cleaning is often faster than traditional methods, improving overall productivity.

- Environmental Friendliness: The process may reduce the need for harsh chemicals, making it more environmentally friendly.

Ultrasonic filter cleaning machines are utilized in various industries such as manufacturing, automotive, electronics, and medical, where filters are integral to processes and need to be maintained at optimal efficiency.
