Key Features of a Voltage Transformer

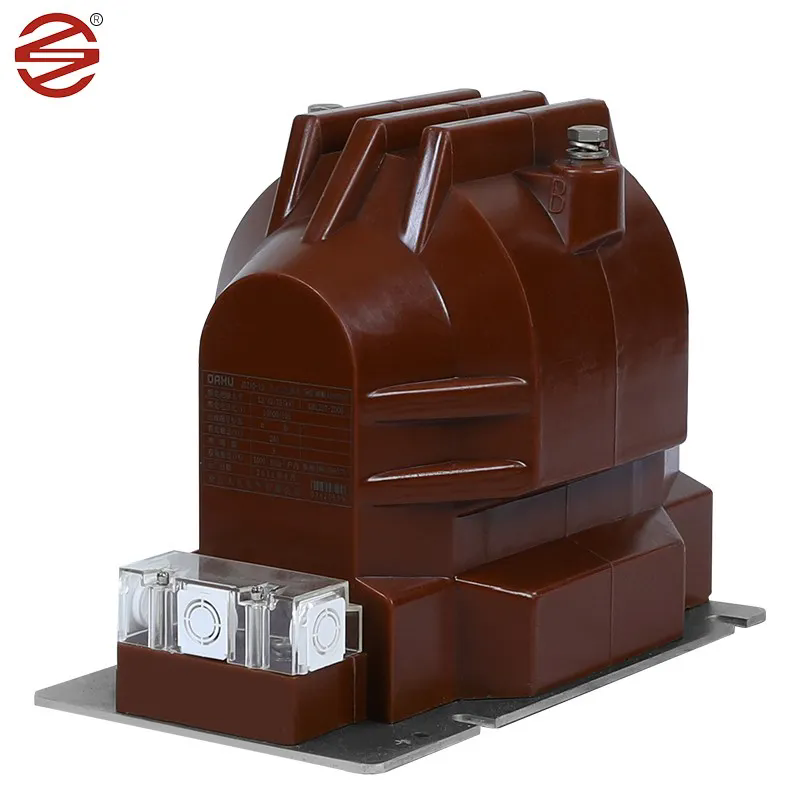

A Voltage Transformer (VT), also known as a Potential Transformer (PT), is a type of transformer used to step down high voltage levels to a lower, standardized voltage level that can be safely measured by instruments and protective devices. VTs are essential in high-voltage systems for monitoring and controlling the voltage levels without exposing measuring devices to dangerous high voltages.

Key Features of a Voltage Transformer:

1. Voltage Reduction: VTs reduce high voltage from the primary side to a lower, proportional voltage on the secondary side, making it safe for use with standard measuring instruments and protection systems.

2. Accuracy: Designed to maintain a precise and linear relationship between the primary and secondary voltage, ensuring accurate voltage measurements.

3. Insulation: VTs are built with high-quality insulation to withstand high voltage levels and provide safe operation in high-voltage environments.

4. Ratio: The VT has a specific transformation ratio, such as 1000:100 or 20,000:110, which indicates how much the voltage is reduced. For example, a 20,000:110 VT will reduce 20,000 volts on the primary side to 110 volts on the secondary side.

5. Phase Relationship: VTs maintain the phase relationship between the primary and secondary voltages, which is critical for accurate measurement and protection in AC systems.

Types of Voltage Transformers:

1. Electromagnetic Voltage Transformer: Uses electromagnetic induction to step down voltage, similar to a typical power transformer but designed specifically for measurement and protection purposes.

2. Capacitive Voltage Transformer (CVT): Utilizes a capacitive voltage divider in conjunction with a small electromagnetic transformer. CVTs are often used in very high-voltage applications (above 100 kV).

3. Inductive Voltage Transformer: This is the traditional type where a magnetic core and windings are used to step down voltage levels.

Applications:

1. Measurement: VTs provide accurate voltage measurements in high-voltage systems, allowing for monitoring of system performance and ensuring safe operation.

2. Protection: VTs are used in conjunction with protective relays to monitor system voltage levels. In the event of an overvoltage or undervoltage condition, the relay can trigger protective devices to prevent damage to equipment.

3. Metering: Used in energy meters for accurate measurement of voltage, which is essential for billing in industrial and commercial power systems.

4. Synchronization: In power systems, VTs help in synchronizing generators and transformers by providing precise voltage measurements that ensure systems are correctly aligned before being connected.

How It Works:

- Primary Winding: The VT’s primary winding is connected to the high-voltage circuit. This winding receives the high voltage that needs to be measured.

- Magnetic Core: The magnetic core transfers the voltage from the primary to the secondary winding through electromagnetic induction.

- Secondary Winding: The secondary winding, with a higher number of turns compared to the primary winding, produces a lower voltage that is proportional to the high voltage on the primary side.

- Output: The reduced voltage is then sent to measuring devices such as voltmeters, protection relays, or energy meters for monitoring, control, or billing purposes.

Importance:

- Safety: VTs allow for the safe measurement of high voltages by stepping them down to levels that can be safely handled by standard instruments.

- Accuracy: They ensure accurate voltage measurement, which is critical for both the protection and control of electrical power systems.

- System Monitoring: VTs provide continuous monitoring of voltage levels, which is essential for maintaining the stability and reliability of power systems.

Usage Scenario:

- In a Substation: A VT is connected to a high-voltage transmission line. The secondary side provides a reduced, accurate voltage signal to a protection relay. If an abnormal voltage is detected, the relay can take action to protect the system.

- In Metering: VTs are used in conjunction with energy meters to accurately measure the voltage in high-voltage power systems, ensuring accurate billing and system monitoring.

Voltage Transformers are crucial in high-voltage power systems, providing a safe and accurate way to measure voltage levels, ensuring the stability, safety, and reliability of the electrical grid.
