Stop Valve: The Unsung Hero of Fluid Control Systems

When it comes to managing the flow of liquids or gases in a system, one component plays a pivotal role in ensuring everything runs smoothly—the stop valve. Often overlooked but essential in countless applications, the stop valve is critical in controlling, directing, and even halting the flow within pipelines. Without it, many industries would struggle to function effectively. So, what exactly is a stop valve, and why is it so vital?

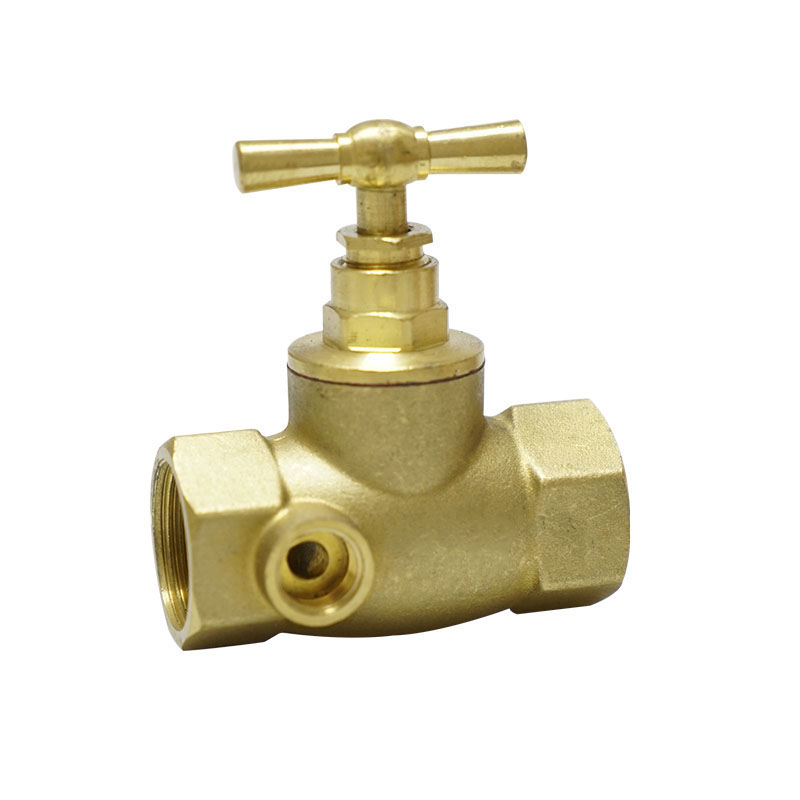

What is a Stop Valve?

A stop valve is a type of valve designed to control or completely stop the flow of a fluid (liquid or gas) through a pipeline. It works by opening or closing a passageway inside a pipe, either allowing or preventing fluid movement. These valves are commonly used in both residential and industrial settings to manage water, gas, steam, or other fluids that need precise control.

The stop valve can be found in water supply lines, heating systems, manufacturing plants, and even in crucial areas like oil and gas pipelines. Its main function is to act as an on-off switch for fluid flow, but it also provides the ability to isolate sections of a pipeline for maintenance or emergencies.

Types of Stop Valves

There are various types of stop valves, each designed to perform specific functions depending on the application. Some of the most common types include:

1. Gate Valve: A gate valve is commonly used in large pipelines where full flow is needed or when the fluid needs to be completely shut off. It has a gate-like mechanism that slides into the pipe to stop the flow.

2. Ball Valve: Ball valves are known for their durability and ability to handle high-pressure systems. They use a spherical ball with a hole in the center that rotates to open or close the passage.

3. Globe Valve: A globe valve is more commonly used for controlling the flow rather than just stopping it. It has a disc that moves against the flow of the fluid to control or stop it completely.

4. Butterfly Valve: Butterfly valves are ideal for controlling the flow of fluids in large-diameter pipes. They operate with a rotating disc, allowing for more compact designs and quick operation.

5. Check Valve: A check valve, although primarily used to prevent reverse flow, can also act as a stop valve in certain applications.

Each type of stop valve has its own advantages and is selected based on factors like the type of fluid, the required pressure, and whether the flow needs to be fully or partially restricted.

How Does a Stop Valve Work?

The stop valve works by utilizing a mechanism that either blocks or allows the passage of fluid. When the valve is in the "open" position, the fluid flows freely through the pipeline. When the valve is closed, it blocks the flow completely, isolating the section of the system beyond it.

In many systems, stop valves are manually operated by a wheel or lever. However, in more sophisticated applications, they can be controlled remotely or automatically, using pneumatic, hydraulic, or electrical actuators to adjust the valve's position.

Here’s a basic overview of the process:

1. Open Position: When the valve is open, the internal mechanism (gate, ball, or disc) is positioned away from the pipe, allowing the fluid to flow through without obstruction.

2. Close Position: When the valve is closed, the mechanism moves into the path of the fluid, blocking it entirely. This prevents the flow of any liquid or gas through the pipe.

3. Partial Flow (Optional): In some systems, stop valves can be adjusted to allow for partial flow, offering more precise control over the fluid movement.

Applications of Stop Valves

Stop valves are indispensable across a wide range of industries and sectors. Here are some common applications:

1. Residential Plumbing: In homes, stop valves are used to control water flow to faucets, toilets, and appliances. They're also found as main shut-off valves to control the entire water supply to the house.

2. Industrial Systems: Stop valves are used in various industrial systems, such as heating, ventilation, and air conditioning (HVAC), oil and gas pipelines, chemical plants, and power generation facilities. They help control fluid flow during maintenance and in emergency situations.

3. Water Treatment: Stop valves play a crucial role in water treatment plants, where they control the flow of treated water or chemicals used in the purification process.

4. Agriculture: In irrigation systems, stop valves help control the flow of water to specific sections of farmland, ensuring efficient water usage.

5. Fire Safety Systems: In fire suppression systems, stop valves are used to isolate parts of the system for maintenance or to control the flow of water or fire retardants when needed.

Why are Stop Valves Important?

Stop valves are a fundamental part of any fluid handling system for several key reasons:

1. Control: Stop valves allow precise control over fluid flow, enabling systems to be adjusted based on demand. This is particularly important in industries where fluid pressure and flow rates must be carefully monitored.

2. Maintenance and Isolation: One of the most critical functions of stop valves is their ability to isolate sections of a pipeline for maintenance. Whether it's a water supply line, an oil pipeline, or an industrial chemical system, stop valves allow operators to shut off sections of the system without disrupting the entire flow.

3. Safety: In many systems, stop valves are used to shut off the flow of dangerous or hazardous fluids, providing a safety measure during emergencies or for system failures.

4. Cost Efficiency: By controlling the flow of fluids, stop valves contribute to energy efficiency and waste reduction in industrial systems, helping companies save on operational costs.

Signs of a Faulty Stop Valve

Although durable, stop valves can wear out over time. It's essential to monitor the system for signs of malfunction. Here are some indicators that a stop valve might need attention:

- Leaking Fluid: If you notice a persistent leak around the valve, it may indicate a worn-out seal or damaged mechanism.

- Difficulty Opening or Closing: If the valve is hard to turn or fails to fully open or close, the internal components might be worn or corroded.

- No Flow Control: If the valve no longer effectively controls fluid flow or fails to stop the flow completely, it might need replacing or maintenance.

Conclusion

The stop valve may be a small and often overlooked component, but it plays an essential role in controlling the flow of fluids in various systems. From residential plumbing to large industrial processes, stop valves ensure safety, efficiency, and smooth operation. Understanding how these valves work and their importance can help you appreciate the complexity and precision involved in fluid control systems. Next time you turn off the water to your home or use a gas pipeline, remember—the stop valve is working silently behind the scenes to keep everything in check!
