Types of Self Tapping Screw

Self-tapping screws are versatile fasteners that create their own threads as they are driven into materials like metal, plastic, or wood. They come in various types, each designed for specific applications and materials. Here are some common types of self-tapping screws:

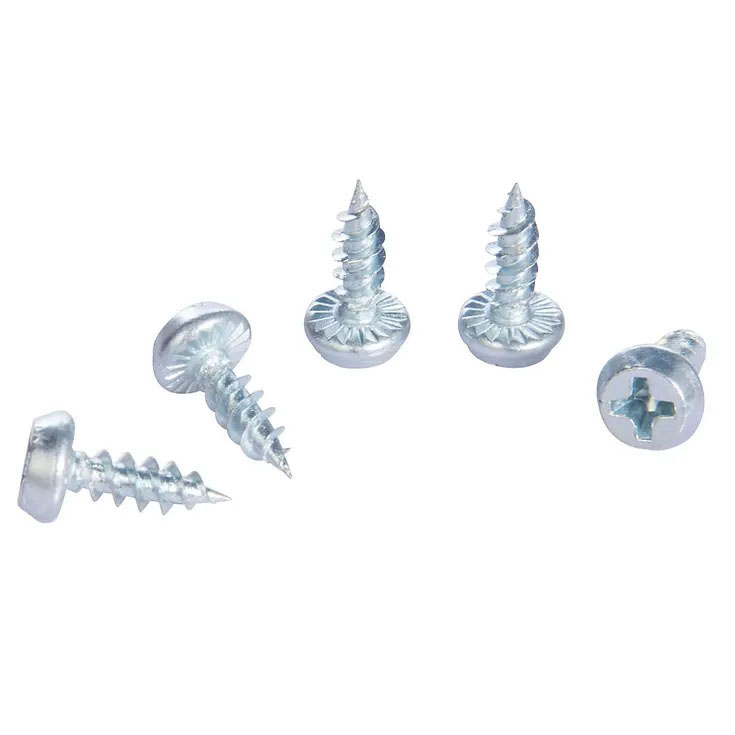

1. Standard Self-Tapping Screws:

  - These screws have a sharp, pointed tip that allows them to cut their own threads into the material as they are screwed in.

  - Available in a variety of head types such as flat, pan, oval, and truss, each suited for different aesthetic and functional needs.

  - Used in general-purpose applications where a secure, threaded connection is needed without pre-drilling.

2. Thread-Forming Self-Tapping Screws:

  - Also known as thread-cutting screws, these screws have a unique thread design that forms mating threads in the material without removing material.

  - Suitable for softer materials like plastics, thin metal sheets, and wood, where they create strong, vibration-resistant connections.

3. High-Low Thread Self-Tapping Screws:

  - These screws have alternating high and low threads along their length.

  - High threads are sharper and spaced closer together, while low threads are wider and spaced further apart.

  - Designed to reduce material displacement and provide a more secure grip in thin sheet metal and plastic applications.

4. Self-Drilling Screws:

  - Also known as Tek screws, these screws have a drill bit-like tip with a flute or wings that remove material as they drill into the substrate.

  - They combine drilling and tapping functions in a single operation, making them ideal for fastening metal to metal or metal to wood without pre-drilling.

5. Concrete Screws:

  - Designed for fastening materials to concrete, brick, or block walls without the need for anchors or plugs.

  - Feature a hardened, coarse-threaded design that bites into the masonry material securely.

6. Drywall Screws:

  - Specifically designed for attaching drywall sheets to wood or metal studs.

  - Have a sharp, coarse-threaded design that quickly penetrates drywall and provides a strong, secure hold.

7. Sheet Metal Screws:

  - Used for fastening thin metal sheets, HVAC ducts, and other sheet metal applications.

  - Feature sharp threads and a sharp point to penetrate sheet metal efficiently without the need for pre-drilling.

Each type of self-tapping screw is designed to optimize performance and ease of installation in specific materials and applications. Choosing the right type of self-tapping screw ensures a secure, reliable fastening solution for your project.
